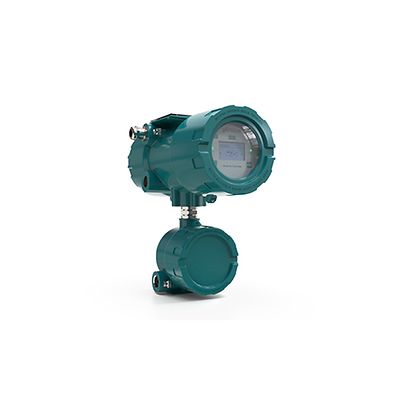

Flexim FLUXUS G831 ST-HT High-temperature Steam Measurement for Hazardous Areas
Flexim FLUXUS G831 ST-HT High-temperature Steam Measurement for Hazardous Areas
Product Description
The Flexim FLUXUS G831 ST-HT measures steam flow non-intrusively from the outside of the pipe. The acoustic measuring method has exceptionally high measuring dynamics and functions independently of the flow direction, offering precise bi-directional flow measurement over a wide turndown ratio up to 10:1 and with no moving parts. Ultrasonic transducers are fixed to the pipe with broad stainless-steel straps or our patented high-temperature mounting system WaveInjector® and secured in robust stainless-steel housings. Intrinsically safe process inputs for pressure and temperature at the meter location means the FLUXUS G831 ST-LT measures volume and mass flow of saturated and superheated steam at temperatures up to 630 °C (1166 °F) in hazardous areas.
Specifications
- Fluid Type
- Saturated and superheated steam
- Accuracy
- Measurement uncertainty of the measuring system (volumetric flow rate): ±0.3 % of reading ±0,005 m/s (±0.02 ft/s)
Measurement uncertainty at the measuring point (volumetric flow rate): ± 3…4 % of reading
- Repeatability
- ± 1… 3 % of reading
- Flow channels
- up to 2
- Range
- Flow Velocity Range: 0,01 to 35 m/s (0.03 to 115 ft/s), depending on pipe diameter
- Certifications/Approvals
- FM Class I/Div. 1
FM Class 1/Div. 2
ATEX/IECEx Zone 1
INMETRO
NEPSI
PESO
KOSHA
- Power supply
- 100-230VAC
20-32VDC
- Pipe size
- 10 to 900 mm (0.39 to 35.4 inch)
- Pressure range
- 1 to 220 barg (15…3190 psig)
- Temperature range (media)
- -40 to +240°C (-40 to +464°F) / WI: -200 to 630°C (-328 to +1166°F)
- Output
- 4-20mA active/passive (optional Ex-ia)
4-20mA HART active/passive (optional Ex-ia)
pulse/frequency/binary
- Input
- Temperature (optional Ex-ia)
4..20mA (optional Ex-ia active)
- Communication Protocol
- Modbus RTU
BACnet MSTP
Profibus PA (optional Ex-ia)
Foundation Fieldbus (optional Ex-ia)
- System configuration and installation
- For more detailed Information please download the Technical Specifications
Features
- Certified for operation within hazardous areas (FM Class I Division 1, ATEX, IECEx Zone 1).
- No pressure loss, no pipe modification, no process interruption.
- High dynamic flow range.
- Easy and cost-efficient retrofit.
