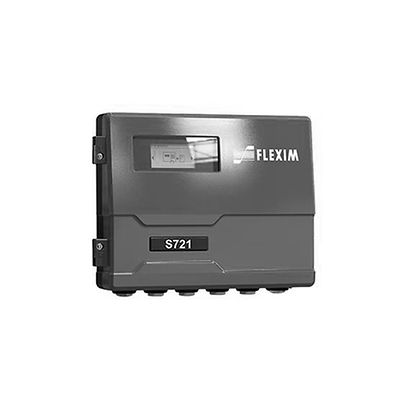

Flexim PIOX S721 - Ultrasonic Mass Flow Meter for Liquids (Obsolete)
Product Description
This product is obsolete. Relevant documents and drawings are listed below. Please contact your local Emerson representative for your measurement needs.
Specifications
Measuring QuantitiesMass flow
AccuracyMeasurement uncertainty (volumetric flow): ± 1 % of reading ±0.02 ft/s*
Repeatability0,1 w%* (0,5m/s)
RangeFlow Velocity Range: 0.03 to 82 ft/s
Certifications/ApprovalsATEX/IECEx Zone 1/Zone 2
FM Class I - Div2
Power supply100-230VAC, 24DC, 12DC
Transducers AvailableShear wave
Pipe Size0.24 inch to 255.9 inch
Temperature Range-40°F to +392°F / WI: -328°F to +1112°F**
Output4-20mA active/passive
4-20mA HART active/passive
pulse/frequency/binary
InputPt100/Pt1000
4-20mA active/passive
Binary input
Communication ProtocolModbus RTU/TCP
BACnet MSTP/IP
Profibus PA
Foundation Fieldbus
System Configuration and InstallationFor more detailed Information please download the Technical Specifications
* For most waterbased solutions and common working point
** additional wave injector required
Features
For all pipe materials - glass, steel, plastic and more
For almost all acids, caustics and a wide range of other toxic liquids
For ATEX, IECEX and FM areas
No shut down for installation
Maintenance free
