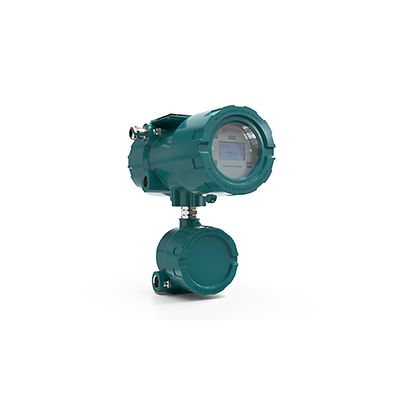

Flexim FLUXUS F831 Permanent Flow Meter for Hazardous Areas
Product Description
The Flexim FLUXUS F831 is a dual channel ultrasonic clamp-on flow meter for bi-directional flow measurement of liquids in hazardous areas (ATEX/IECEx Zone 1 and FM Class I Division 1 approved). With its explosion proof housing, optional intrinsically safe inputs and outputs and the corrosion resistant transducers residing outside the pipe wall, the FLUXUS F831 series is perfectly suited for every demanding industrial application in and out of the oil field and the chemical industry. The connection and electronics compartments of the FLUXUS F831 are hermetically sealed, and the flow meter comes with carefully matched and temperature compensated transducers (fully ANSI / ASME MFC 5M compliant) providing unmatched zero-point stability.
Specifications
Fluid TypeAll liquids
AccuracyMeasurement uncertainty of the measuring system (volumetric flow rate): ±0.3 % of reading ±0,005 m/s (±0.02 ft/s)
Measurement uncertainty at the measuring point (volumetric flow rate): ± 1 % of reading ±0,005 m/s (±0.02 ft/s)
Repeatability0.15 % of reading ±0,005 m/s (±0.02 ft/s)
Flow channelsup to 2
RangeFlow Velocity Range: 0,01 to 25 m/s (0.03 to 82 ft/s), depending on pipe diameter
Certifications/ApprovalsFM Class I/Div. 1
FM Class 1/Div. 2
ATEX/IECEx Zone 1
INMETRO
NEPSI
PESO
KOSHA
Power supply100-230VAC
20-32VDC
Pipe size6 to 6500 mm (0.24 to 255.9 inch)
Pressure range-
Temperature range (media)-40 to +240°C (-40 to +464°F) / WI: -200 to 630°C (-328 to +1166°F)
Output4-20mA active/passive (optional Ex-ia)
4-20mA HART active/passive (optional Ex-ia)
pulse/frequency/binary
InputTemperature (optional Ex-ia)
4..20mA (optional Ex-ia active)
Communication ProtocolModbus RTU
BACnet MSTP
Profibus PA (optional Ex-ia)
Foundation Fieldbus (optional Ex-ia)
System configuration and installationFor more detailed Information please download the Technical Specifications
