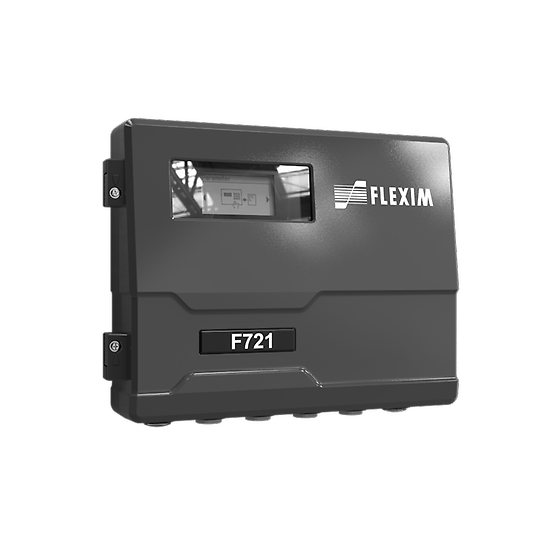

Flexim FLUXUS F721 Non-Intrusive Ultrasonic Liquid Flow Measurement
Release time：2025-10-14 10:18:41 publisher：小编 Page View：
Product Description
This product is obsolete. Relevant documents and drawings are listed below. Please contact your local Emerson representative for your measurement needs.
Specifications
- Fluid type
- All liquids
- Accuracy
- Measurement uncertainty of the measuring system (volumetric flow rate): ±0.3 % of reading ±0,005 m/s (±0.02 ft/s)
Measurement uncertainty at the measuring point (volumetric flow rate): ±1 % of reading ±0,005 m/s (±0.02 ft/s)
- Repeatability
- 0.15 % of reading ±0,005 m/s (±0.02 ft/s)
- Flow Channels
- up to 2
- Range
- Flow Velocity Range: 0,01…25 m/s (0.03 to 82 ft/s), depending on pipe diameter
- Certifications/Approvals
- FM Class I /Div 2
ATEX/IECEx Zone 2
PESO
KOSHA
- Power supply
- 100-230VAC
24VDC
12VDC
- Pipe size
- 6 to 6500 mm (0.24 to 255.9 inch)
- Pressure range
- -
- Temperature range (media)
- -40 to +200°C (-40 to +392°F) / WI: -200 to +630°C (-328 to +1166°F)
- Output
- 4-20mA active/passive
4-20mA HART active/passive
pulse/frequency/binary
voltage
- Input
- Temperature
4-20mA active/passive
binary
voltage
- Communication Protocol
- Modbus RTU/TCP
BACnet MSTP/IP
Profibus PA
Foundation Fieldbus
- System configuration and installation
- For more detailed Information please download the Technical Specifications
Features
- Certified for operation within hazardous areas (ATEX/IECEx Zone 2 and FMc Class I, Division 2 certified).
- High sampling rates (output of measurement data every 10 ms), capturing pulsating flows.
- Reliable measurements of slurries or liquids with gaseous entrainments.
- High operational safety with no risk of leaks.
- Independent of pipe material, diameter, wall thickness and internal pressure and temperature.
- Accurate and repeatable measurement readings - even at extremely low flow rates (high turndown ratio).
- Highly cost-efficient in comparison to wetted instrumentation.
- Every measurement system is pre-calibrated in-house (traceable to national standards) and delivered with a calibration certificate.
- Matched transducers, integrated temperature compensation (according to ANSI/ASME MFC-5.1-2011 regulations) and advanced digital signal processing guarantee a high zero-point stability, drift-free and accurate measurement readings.
- Permanent coupling ensures long-term reliable non-intrusive flow measurement even under harsh environmental conditions, such as submersion.
- Bi-directional communication as well as remote parameterization and diagnostic capabilities.
