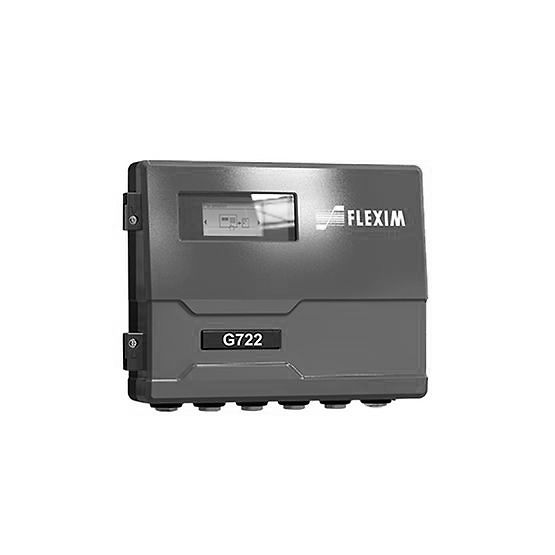

Flexim FLUXUS G722 Synchronized Channel Averaging (SCA) (Obsolete)
Release time：2025-10-15 10:15:48 publisher：小编 Page View：
Product Description
This product is obsolete. Relevant documents and drawings are listed below. Please contact your local Emerson representative for your measurement needs.
Specifications
- Fluid type
- All gases
- Accuracy
- Measurement uncertainty of the measuring system (volumetric flow rate): ±0.3 % of reading ±0,005 m/s (±0.02 ft/s)
Measurement uncertainty at the measuring point (volumetric flow rate): ±1…2 % of reading ±0,005 m/s (±0.02 ft/s)
- Repeatability
- 0.15 % of reading ±0,005 m/s (±0.02 ft/s)
- Flow Channels
- 2
- Range
- Flow Velocity Range: 0,01…35 m/s (0.03 to 115 ft/s), depending on pipe diameter
- Certifications/Approvals
- FM Class I /Div 2
ATEX/IECEx Zone 2
PESO
KOSHA
- Power supply
- 100-230VAC
24VDC
12VDC
- Pipe size
- 7 to 1600 mm (0.28 to 63 inch)
- Pressure range
- 1barg (15 psig) to unlimited
- Temperature range (media)
- -40 to +240°C (-40 to +464°F) / WI: -200 to +630°C (-328 to +1166°F)
- Output
- 4-20mA active/passive
4-20mA HART active/passive
pulse/frequency/binary
voltage
- Input
- Temperature
4-20mA active/passive
binary
voltage
- Communication Protocol
- Modbus RTU/TCP
BACnet MSTP/IP
Profibus PA
Foundation Fieldbus
- System configuration and installation
- For more detailed Information please download the Technical Specifications
Features
- Accuracy and repeatability - exceptional reliability and accuracy at high and low flows due to matched, calibrated and temperature compensated transducers, advanced signal processing capabilities and diagnostics.
- Easy installation without process interruptions - an externally mounted system means no need for process interruptions or additional engineering costs.
- Maintenance-free - no contact with flowing media results in a completely maintenance-free and durable metering solution to withstand even the harshest environments.
- Operational safety - no leak paths, no fugitive emissions.
- Advanced Meter Verification.
