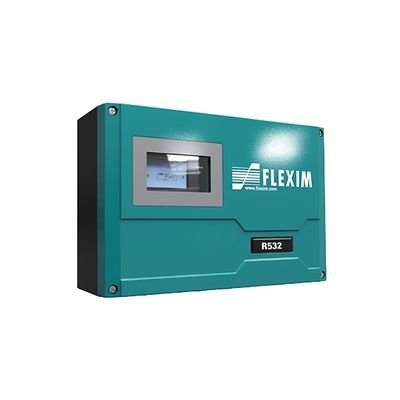

Flexim PIOX R532 Transmitter for Process Refractometers
Release time：2025-10-16 10:40:34 publisher：小编 Page View：
Flexim PIOX R532 Transmitter for Process Refractometers
Product Description
The Flexim PIOX R532 transmitter serves all standard refractometer applications. Compatible to all R500 refractometer sensors, the R532 is critical for the configuration of the sensor either directly via keypad or via laptop. 4…20 mA, HART and Modbus signals output the main measurement data such as refractive index, concentration, density as well as diagnostic values like fluid temperature, signal amplitude, and sensor humidity.
Specifications
- Housing Material
- Aluminum
- Explosion Protection
- NonEx
- Outputs
- Max. 1: current (4…20 mA active/passive), binary
- Inputs
- 4-20 mA active/passive, binary, voltage
- Communication Protocol
- Modbus RTU, HART ®
- Dimensions
- 240 x 160 x 80 mm
- Power Supply
- 90...250 V/50...60 Hz or 11...32 V DC
Features
- Compact design.
- Internal self-diagnostic tools for predictive and low maintenance efforts.
- Simple and cost-effective retrofitting without supply interruption.
- USB and LAN interface.
