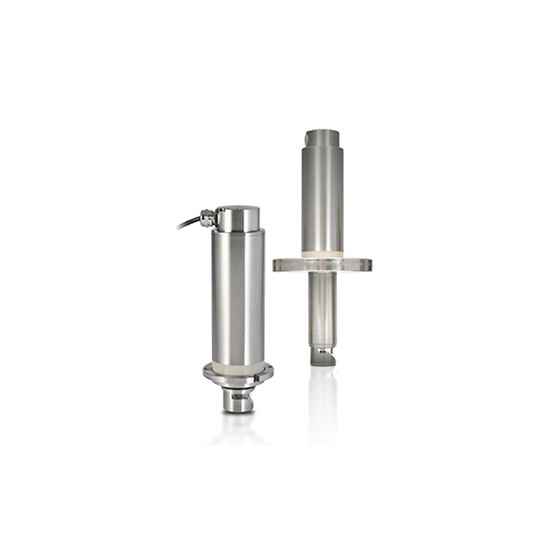

Flexim PIOX R500-*C-S4 Process Refractometer Sensor
Flexim PIOX R500-*C-S4 Process Refractometer Sensor
Product Description
The Flexim PIOX R500-*C-S4 is the chemical design variant of the process refractometer sensor and offers a fully stainless-steel design. All wetted parts are 316 Ti (1.4571) grade steel with specialized FFKM gaskets. This makes it the ideal robust sensor for harsh chemical environments.
The R500 is ATEX and FM certified and available with long and short sensor heads for maximum flexibility in process integration, either by DIN or ANSI standard. For larger pipes and tanks the sensor can be directly mounted in a T-flange. In pipes 3 inches and smaller various flow cells are available offering connection via welding, screw connection or standard flange down to 3/8 inches.
Specifications
- Measurement range
- nD: 1.3... 1.7, °Brix: 0...100
- Measurement uncertainty
- nD: 0.0002 (corresponds to: 0.1 °Brix, 0.1 w%
- Repeatability
- nD: 0.00002 (corresponds to: 0.01 °Brix, 0.01 w%)
- Process Wetted Materials
- Stainless steel 316Ti (1.4571), FFKM gaskets, sapphire
- Housing material
- Stainless steel 304 (1.4301)
- Operating temperature (fluid)
- -20...+150 °C
- Maximum fluid pressure
- PN 16, on request PN 40
- IP protection
- IP67
- Explosion protection / Approvals
- NonEx, ATEX/IECEx Zone 0, FM Class I Division 1
- Process connection
- DIN/ANSI flange, flow cell
Features
- Highly accurate.
- Robust design with chemical grade steel, protected gaskets seats and FFKM gaskets.
- Internal self-diagnostic tools for predictive and low maintenance efforts
- ATEX/IECEx Zone 0, FM Class I Division 1 ratings.
- ATEX/IECEx Zone 0, FM Class I Division 1 ratings.
