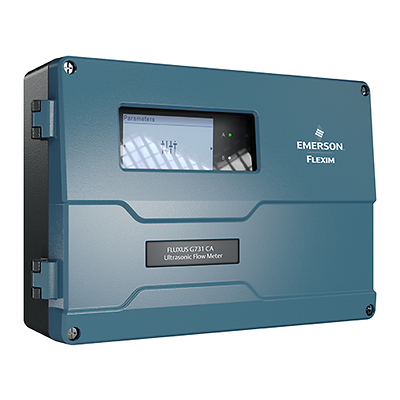

Flexim FLUXUS G731 CA - Non-intrusive Compressed Air Flow Meter
Release time：2025-10-15 10:52:07 publisher：小编 Page View：
Flexim FLUXUS G731 CA - Non-intrusive Compressed Air Flow Meter
Product Description
The Flexim FLUXUS G731 CA compressed air flow meter boasts non-intrusive clamp-on ultrasonic technology - unique in that it can be applied to measure compressed air flow rates even at very low pressures (down to 3 bar on steel lines and atmospheric pressure on plastic lines). Also, even the lowest flow rates are accurately captured, revealing the smallest leaks. The FLUXUS G731 CA is particularly suitable for non-intrusively measuring quantities drawn off at individual points in the compressed air grid, as well as detecting leaks within it.
Specifications
- Fluid type
- Air, nitrogen, oxygen, helium, argon
- Accuracy
- Measurement uncertainty of the measuring system (volumetric flow rate): ±0.3 % of reading ±0,005 m/s (±0.02 ft/s)
Measurement uncertainty at the measuring point (volumetric flow rate): ±1…2 % of reading ±0,005 m/s (±0.02 ft/s)
- Repeatability
- 0.15 % of reading ±0,005 m/s (±0.02 ft/s)
- Flow Channels
- up to 2
- Range
- Flow Velocity Range: 0,01…35 m/s (0.03 to 115 ft/s), depending on pipe diameter
- Certifications/Approvals
- FM Class I /Div 2
ATEX/IECEx Zone 2
- Power supply
- 90-264VAC
11-32VDC
- Pipe size
- 10 to 250 mm (0.39 to 9.8 inch)
- Pressure range
- 1barg (15 psig) to unlimited
- Temperature range (media)
- -40 to +130°C ('-40 to +266°F)
- Output
- 4-20mA active/passive
4-20mA HART® active/passive
pulse/frequency/binary
- Input
- Temperature
4-20mA active/passive
- Communication Protocol
- Modbus RTU/TCP
BACnet MSTP/IP
Profibus PA
FOUNDATION Fieldbus
M-Bus
- System configuration and installation
- For more detailed Information please download the Technical Specifications
Features
- Non-intrusive compressed air and technical gas flow measurement from 3 bar absolute onwards.
- Available as a dual channel meter, stainless steel housing, ATEX/IECEx and FM approval.
- Integrated standard volume flow calculation.
- Extreme measurement dynamics from lowest to highest flow velocities - easy detection of leakages and load peaks.
- Bi-directional measurement, able to detect back-flow.
- Simple and cost-effective retrofitting without shut down.
- USB and LAN interface.
- Communication interfaces Modbus TCP, Modbus RTU, BACnet MS/TP, BACnet IP, M-Bus.
- Advanced Meter Verification.
- ISO 24062 compliant.
- Flow disturbance correction to reduce required straight runs down to 2D inlet.
